Danfoss RAS-D2 TRV Combi Sensor Set White Sensor Chrome Straight, 10/15 mm

Danfoss RAS-D2 TRV Combi Sensor Set White Sensor Chrome Straight, 10/15 mm

RAS-D2 radiator thermostats are designed for use in 2-pipe domestic heating systems like designer radiators or towel rails. All RAS-D2 Combi Packs comprise a RA-FS bi-directional valve and a RAS-D2 sensor designed for 2-pipe heating systems. The valves have a �� BSP (R��) tailpiece connection to the radiator and include 8mm, 10mm and 15mm compression fittings to connect the valve to the pipework.

The valve bodies are reversible and bi-directional and include a flow-selectable feature to ensure trouble-free installation without any

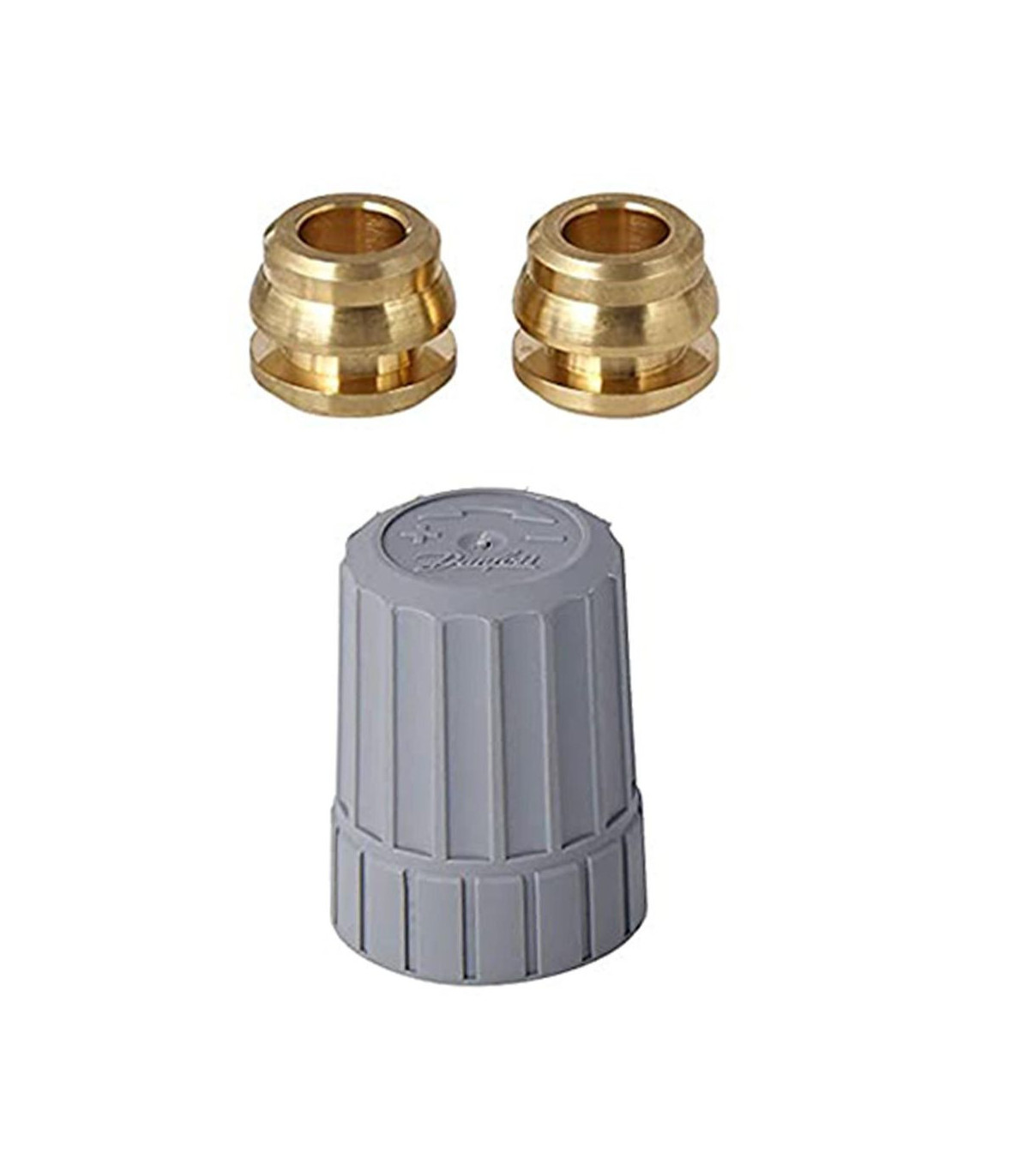

risk of water hammer.�The valve is supplied with a protective cap, which can be used for manual regulation during the construction phase. The cap must not be used as a manual shut of the device. RAS-D2 sensors incorporate a �Frost Protection� setting and a �Positive Off� feature for maximum user flexibility. The temperature range is from 8�C to 28�C

Features:

Bi-directional valve

Flow selectable

Manual / Lockshield valve included

Stylish, compact and easy to fit

Suitable for 8mm, 10mm, and 15mm pipe sizes

High-performance liquid sensor

Temperature range 8-28�C

Can be mounted horizontally or vertically

Frost protection setting

Positive off feature - ideal for removing radiators for decorating

Specification:

Connection type to valve: RA

Design: Straight

RLV type: RLV-D

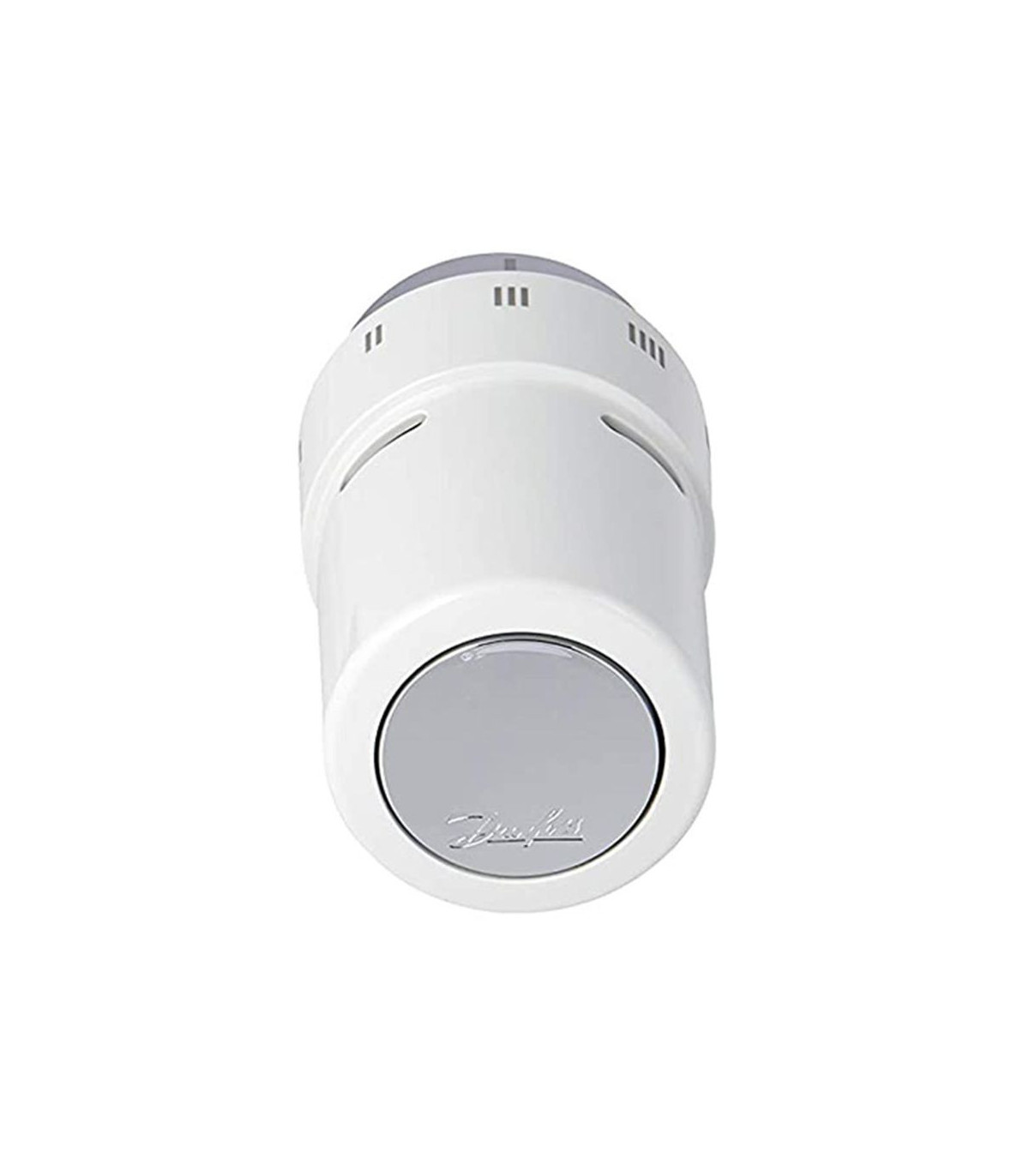

Sensor design: RAS-D2

Sensor media: Liquid

Sensor setting temperature [�C] [Max]: 28 �C [Min]: 8 �C

Sensor type: Built-in sensor

Type: RAS-D2 + Bidir + RLV

Valve size: 10/15 mm

Valve type: Bidir

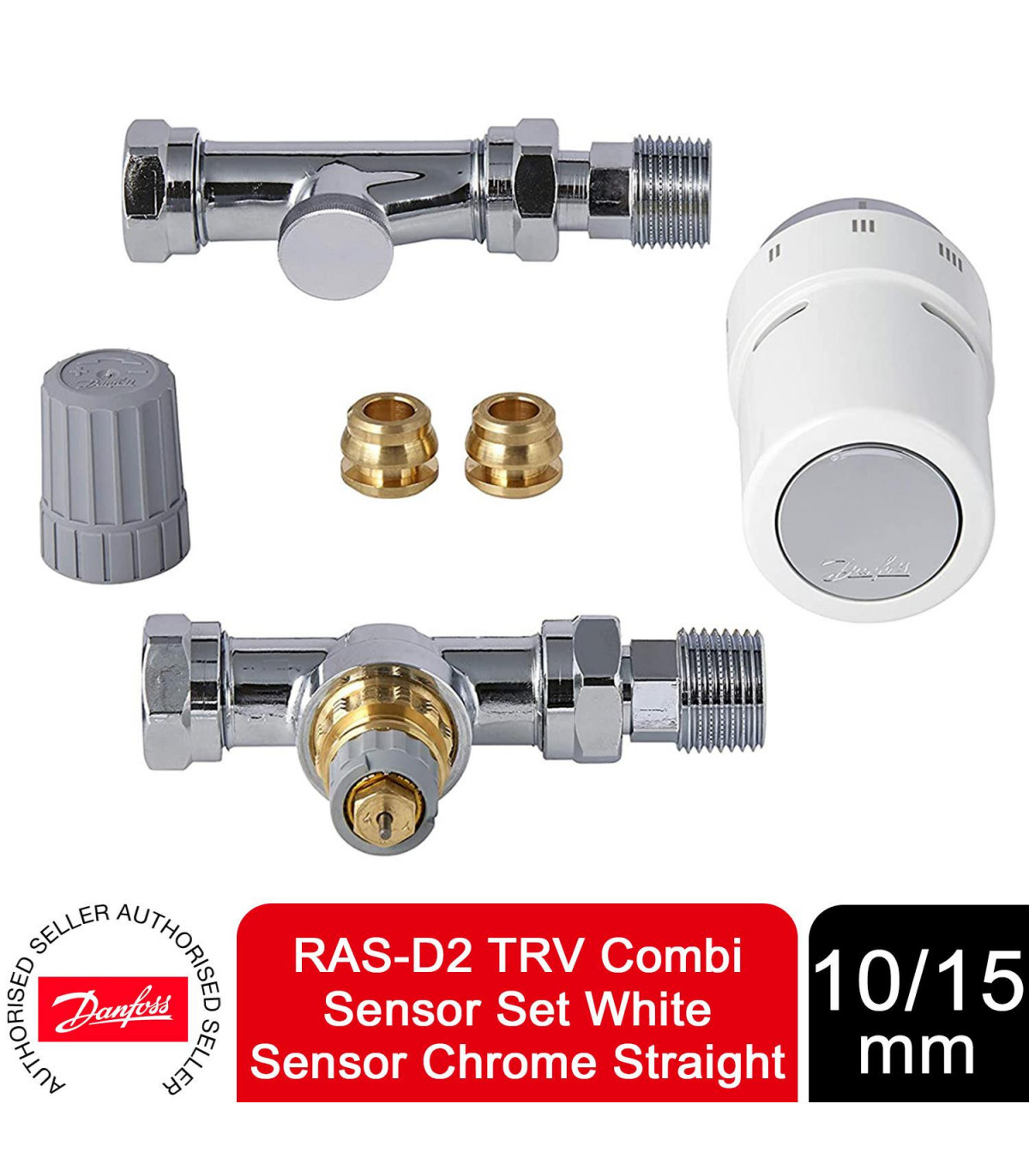

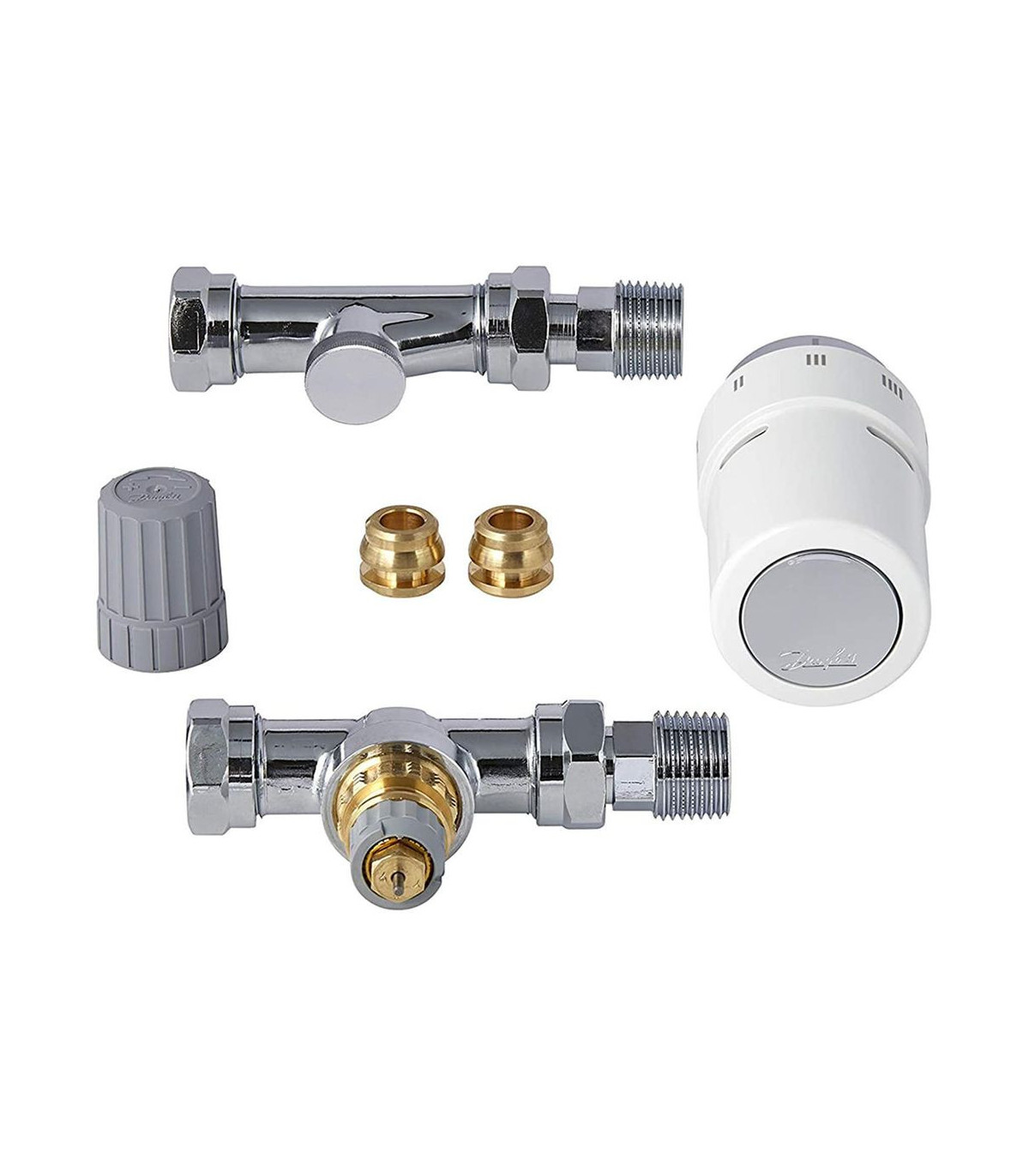

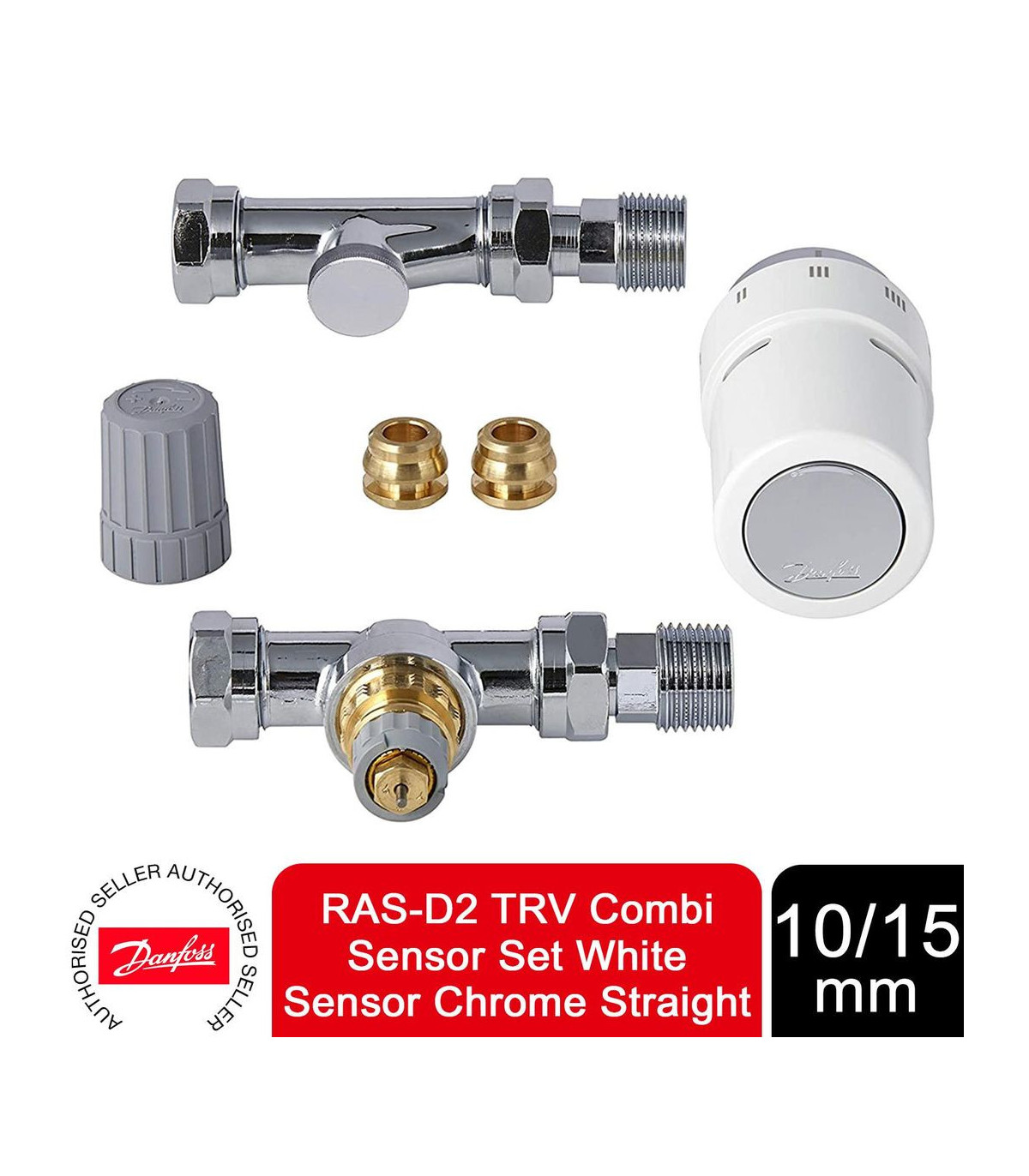

Box Contains:

1x RAS-D2 sensor

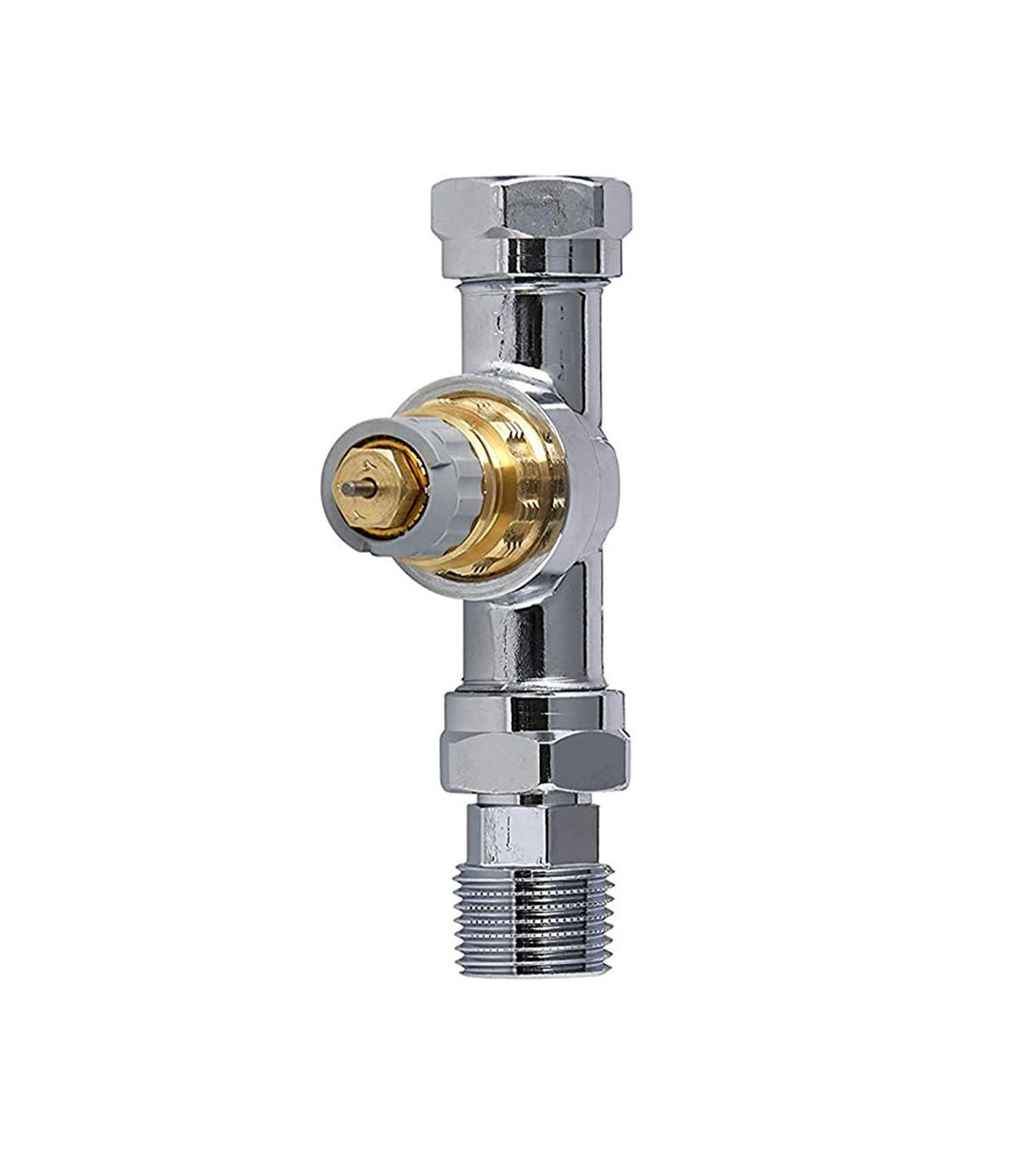

1x RA-FS 15 mm bi-directional straight valve

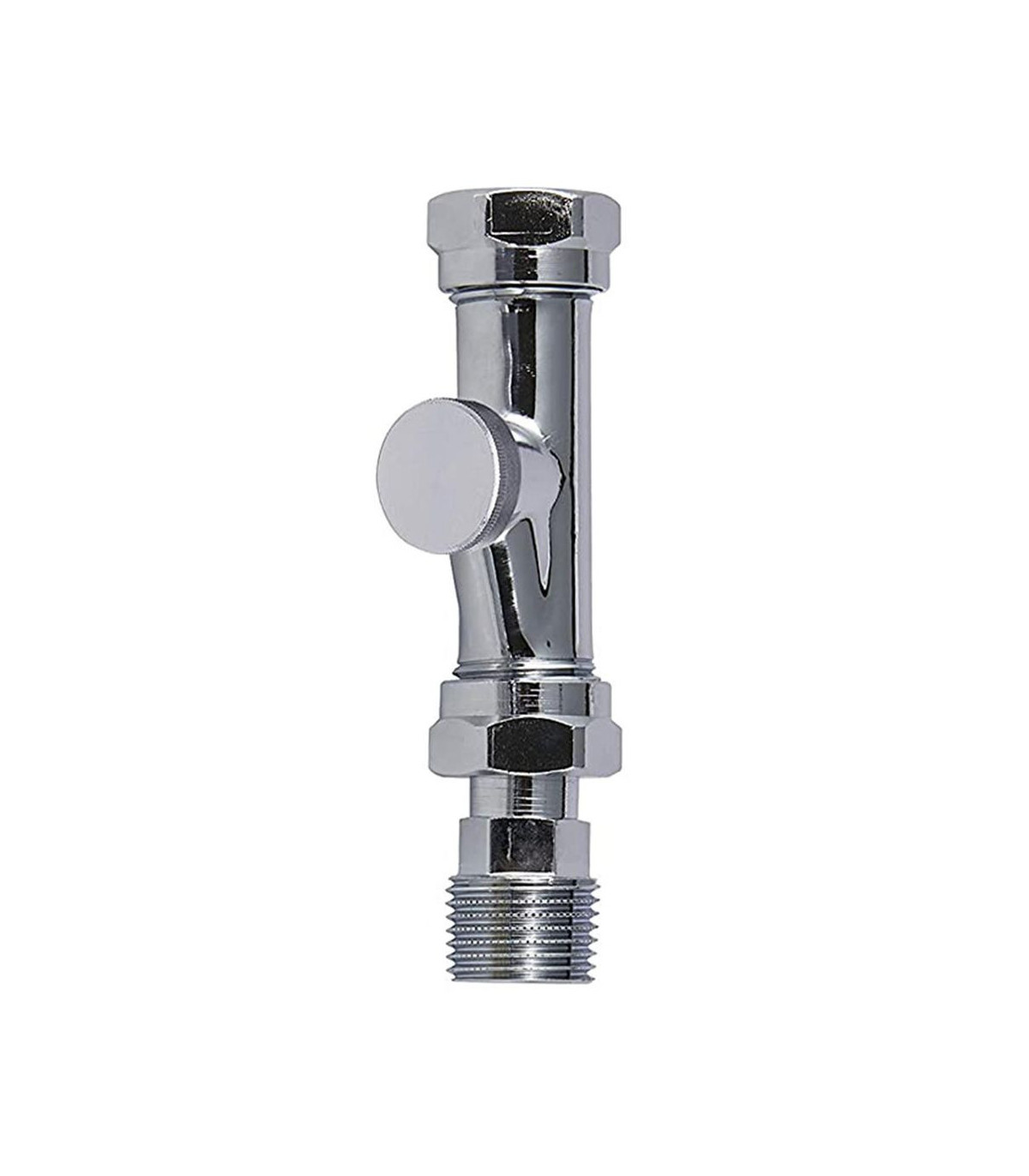

1x lockshield valve with 10/15 mm fittings

1x Allen key
